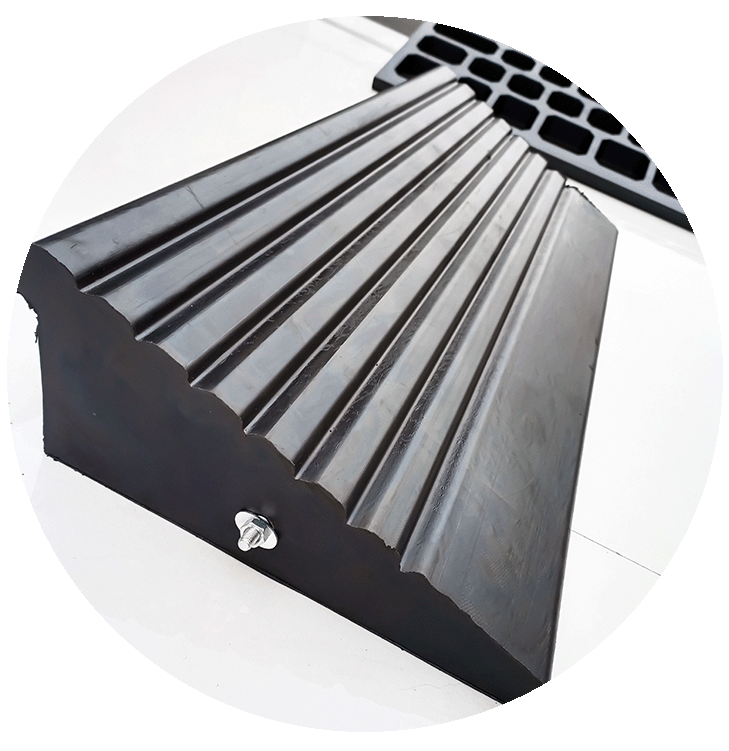

High load-bearing rubber ramp HR50
-
HR50:
430mm*600mm*51.5mmx10kg
Simple description
Product material and environmental advantages

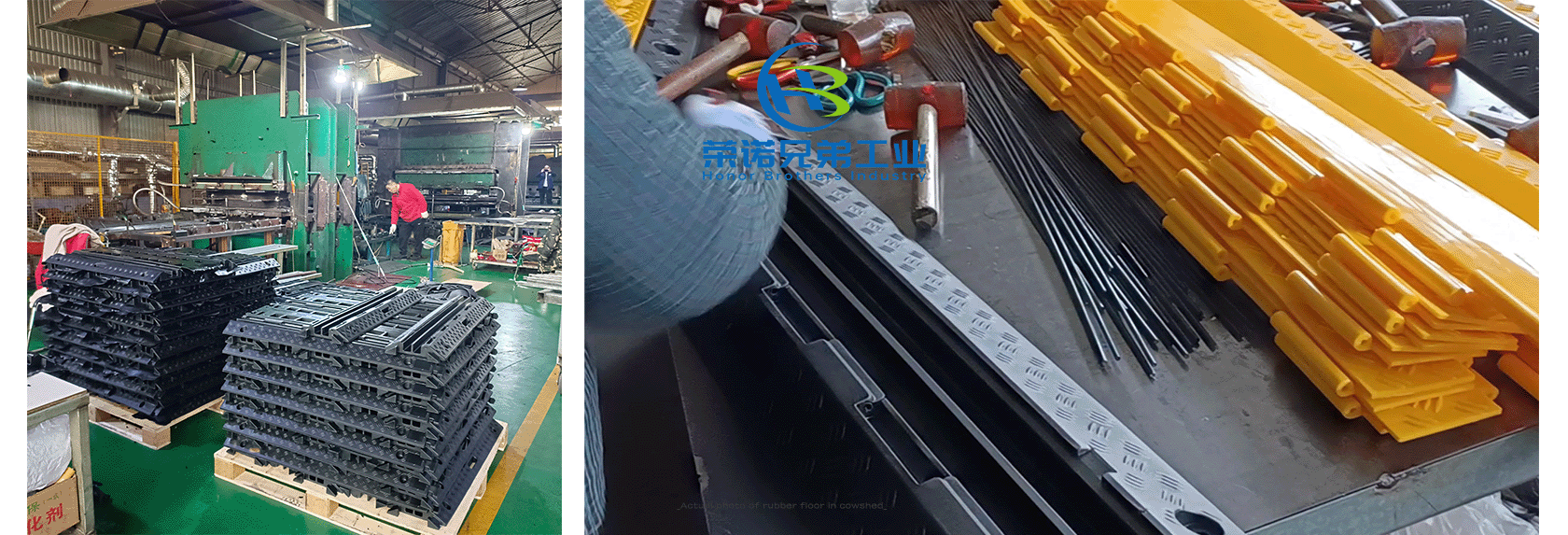

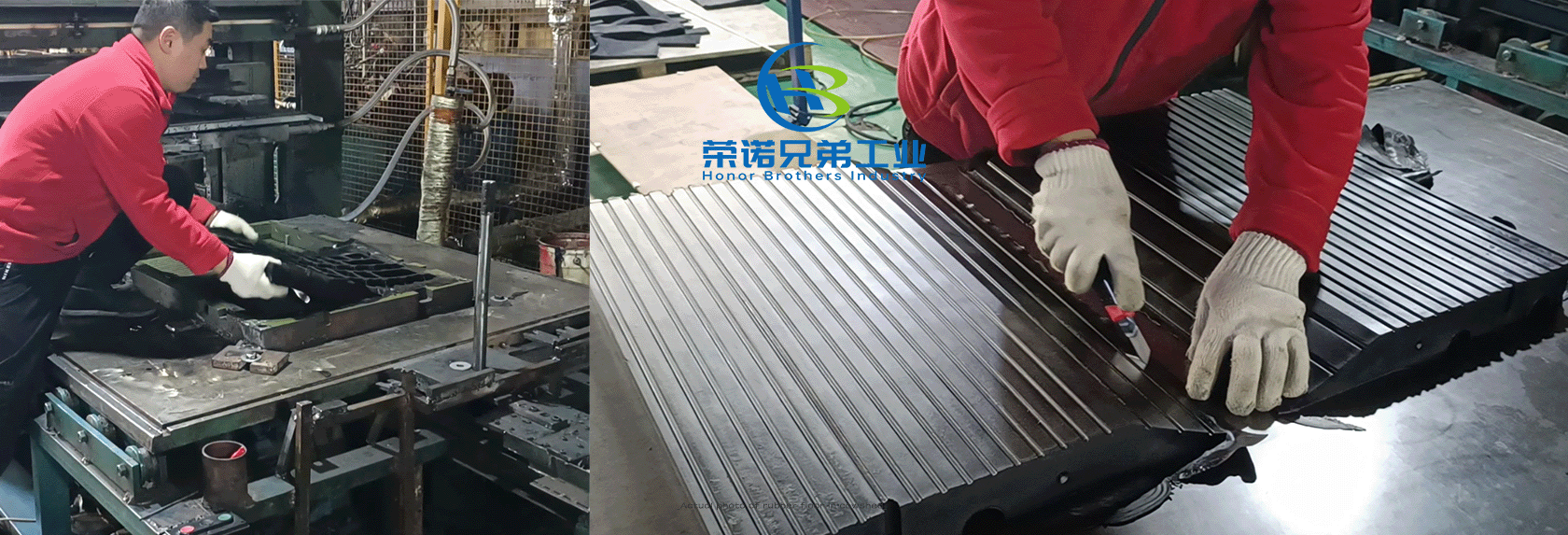

This product is made of high-strength recycled rubber and compression molded through precision technology The reclaimed rubber has the characteristics of anti-aging, high and low temperature resistance (-40 ℃~120 ℃) (continuous use ≤ 80 ℃), and low cost, realizing the dual value of environmental protection and economy.
Core performance and usage scenarios:
Super Load Capacity: The product can bear up to 20-30 tons per piece and is suitable for heavy truck loading and unloading, forklift cargo transportation, and animal husbandry channels (such as moving cattle and horses), completely solving the problem of traditional slope collapse.

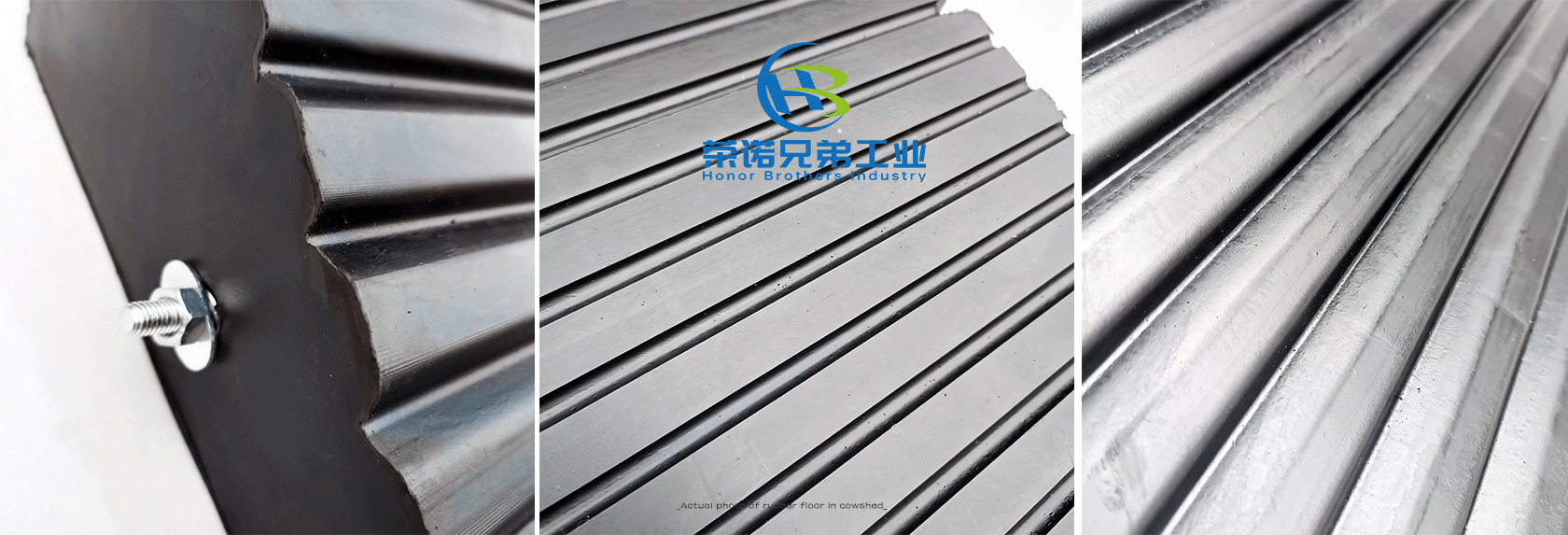

Deep anti slip: The surface is designed with horizontal grooves with a depth of 5mm, which can maintain grip even in rainy, snowy, and muddy environments, reducing the risk of animal slipping and injury.
Flexible application: Modular splicing design can be extended up to 100 meters, suitable for different scenarios such as trucks, cargo holds, ranch gates, etc; Pre drilled holes at the edge support bolt fixation to prevent displacement.
Special value of animal husbandry:
Provide safe and efficient animal loading and unloading solutions for ranchers:
Anti slip patterns reduce the slipping of cow hooves and lower stress responses;
The wear-resistant surface can be washed and disinfected, meeting hygiene management requirements;
Lightweight design (only 11kg per piece) facilitates mobile deployment.
Extended scenarios:
It is also suitable for scenarios where high load-bearing slopes need to be quickly deployed, such as temporary fire exits, access to construction site equipment, and outdoor activity stage construction.
This product is made of high-strength recycled rubber and compression molded through precision technology The reclaimed rubber has the characteristics of anti-aging, high and low temperature resistance (-40 ℃~120 ℃) (continuous use ≤ 80 ℃), and low cost, realizing the dual value of environmental protection and economy.
Core performance and usage scenarios:
Super Load Capacity: The product can bear up to 20-30 tons per piece and is suitable for heavy truck loading and unloading, forklift cargo transportation, and animal husbandry channels (such as moving cattle and horses), completely solving the problem of traditional slope collapse.
Deep anti slip: The surface is designed with horizontal grooves with a depth of 5mm, which can maintain grip even in rainy, snowy, and muddy environments, reducing the risk of animal slipping and injury.
Flexible application: Modular splicing design can be extended up to 100 meters, suitable for different scenarios such as trucks, cargo holds, ranch gates, etc; Pre drilled holes at the edge support bolt fixation to prevent displacement.
Special value of animal husbandry:
Provide safe and efficient animal loading and unloading solutions for ranchers:
Anti slip patterns reduce the slipping of cow hooves and lower stress responses;
The wear-resistant surface can be washed and disinfected, meeting hygiene management requirements;
Lightweight design (only 11kg per piece) facilitates mobile deployment.
Extended scenarios:
It is also suitable for scenarios where high load-bearing slopes need to be quickly deployed, such as temporary fire exits, access to construction site equipment, and outdoor activity stage construction.
-
Application

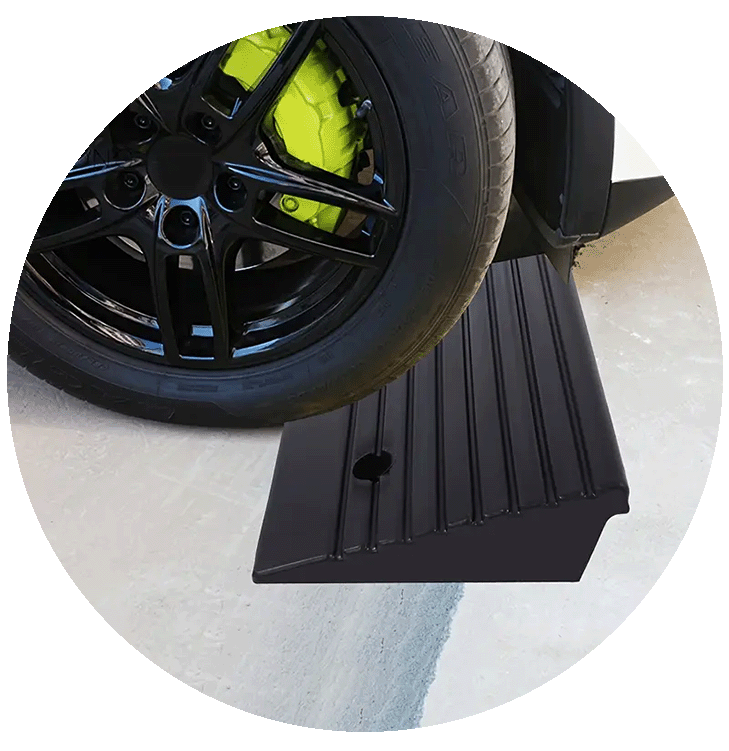

Street ramps
animal loading and unloading ramps
fire exits
construction site equipment access ramps
outdoor activity stage construction -
Features
Super strong load-bearing capacity
Deep anti slip
Module splicing
Easy disassembly
flexible application
Easy to move
Economic and Environmental Protection
Product attribute
Material | 100% reclaimed rubber (SGS certified) | UV resistance grade | Grade 4 | |||||||||
Density | 1.2-1.4g/cm³ (high-density compression-resistant) | Waterproof rating | IP67 (fully dustproof, short-term water immersion) | |||||||||

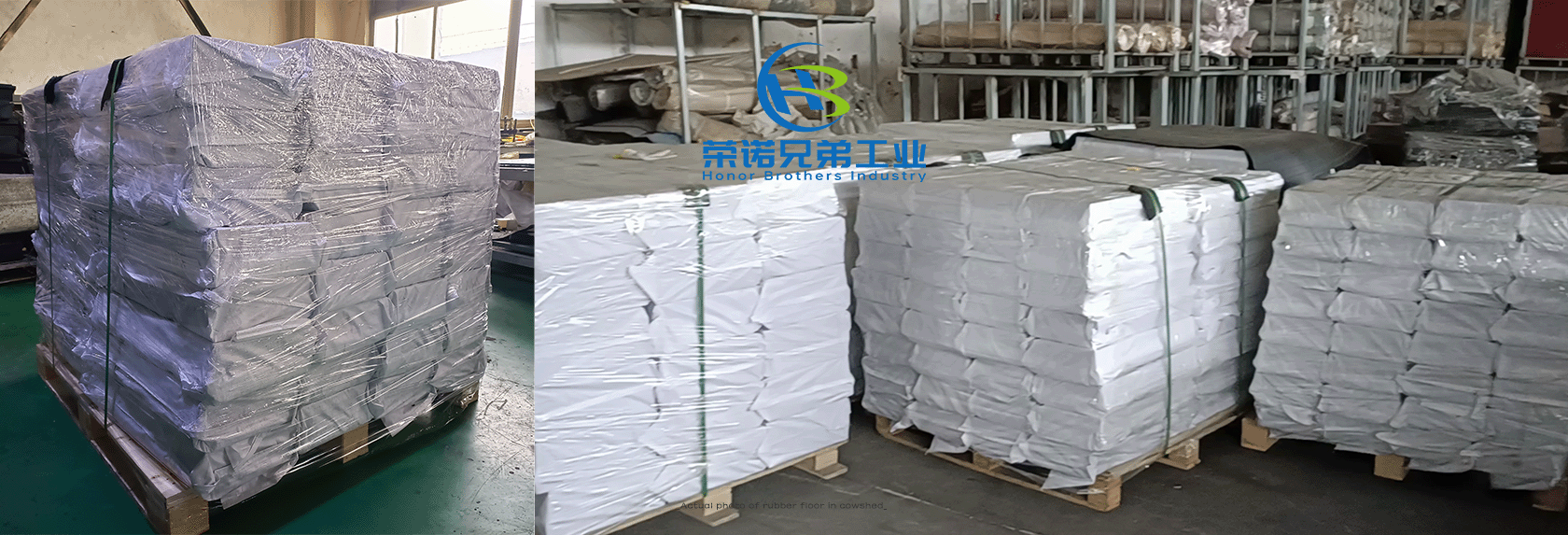

Packaging | Woven bag + wooden pallet | |||||||||||
Trademark | Customizable trademark | |||||||||||
Hardness (Shore A) | 75A±5 Shore A | |||||||||||
Origin | Shandong, China | |||||||||||
Environmental standards | REACH/CE | |||||||||||
Tensile strength | ≥10MPa (ASTM D412 standard) | Installation method | Modular splicing + bolt fixing | |||||||||
Elongation at break | ≥300% | Maintenance cycle | No special maintenance required (recommended cleaning twice a year) | |||||||||
Load-bearing capacity | 20-30 tons/m² | Recyclability | 100% recyclable | |||||||||
Fire resistance rating | B1 grade (GB 8624-2012 flame-retardant material) | |||||||||||
Slip resistance grade | R11 grade (wet surface friction coefficient ≥0.55, DIN 51130) | |||||||||||
Electrical insulation | Volume resistivity ≥1×10¹²Ω·cm (IEC 60093 standard) | |||||||||||
Oil resistance | Resistant to oil immersion for 72 hours without swelling (ASTM D471) | Color | Black/Yellow/Customizable with Pantone color card | |||||||||
Acid and alkali resistance | Resistant to 10% sulfuric acid/sodium hydroxide solution immersion for 48 hours without corrosion | |||||||||||

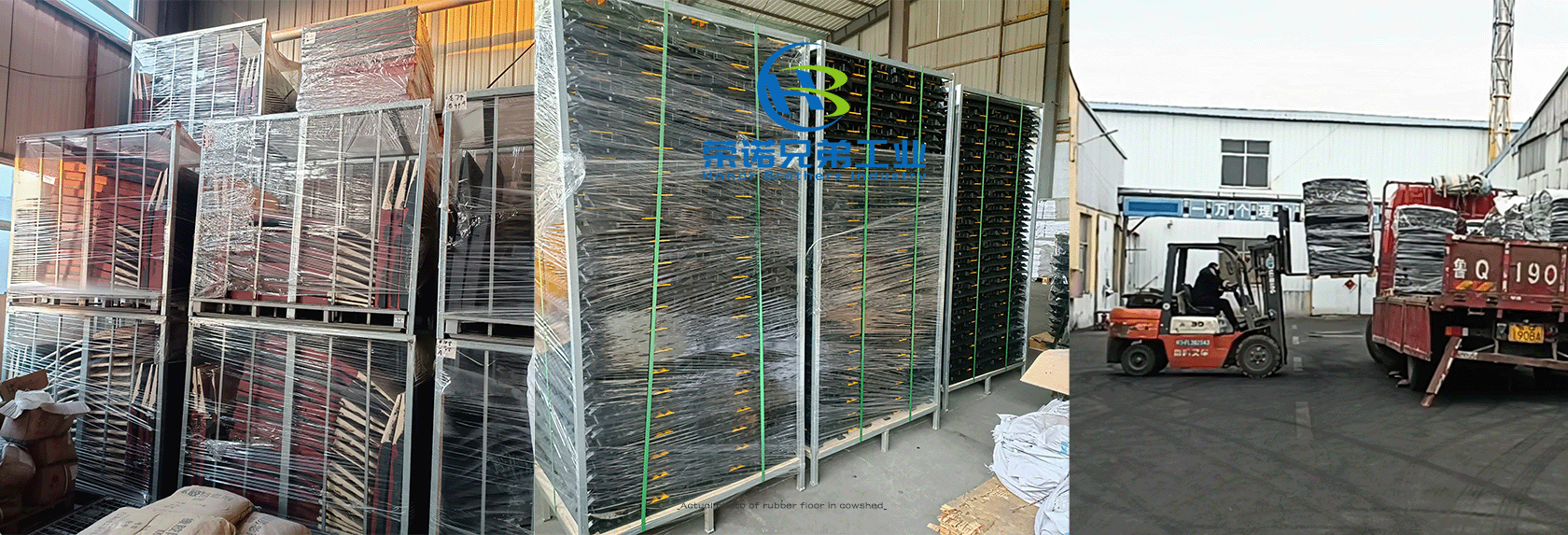

Supply capacity | 5000pieces/Month | |||||||||||
Dimensions (LxWxH) | 430mm*600mm*51.5mm(custom) | HS code | 4016910000 | |||||||||
Surface gloss | Matte (60° gloss meter test ≤10GU) | |||||||||||
Weight | 10KG±0.5KG(±5%) | |||||||||||
Shock absorption | Impact absorption rate ≥30% (EN 1177 standard) | |||||||||||
Surface design | Striped drainage grooves | |||||||||||
Noise reduction | Noise reduction ≥15dB (ASTM E1050 test) | |||||||||||
Temperature resistance range | -40℃ to 120℃ | |||||||||||
Note: The weight of a single product may have a reasonable error range of ±5%. The actual value shall be subject to the factory inspection report. | ||||||||||||

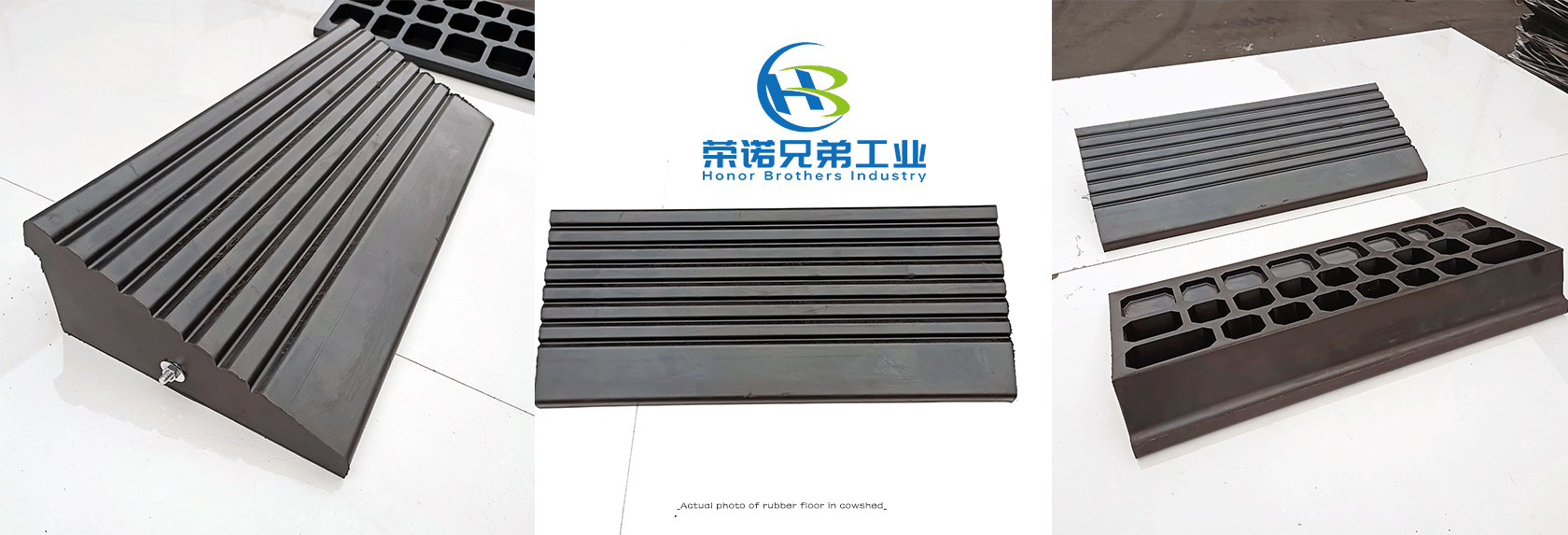

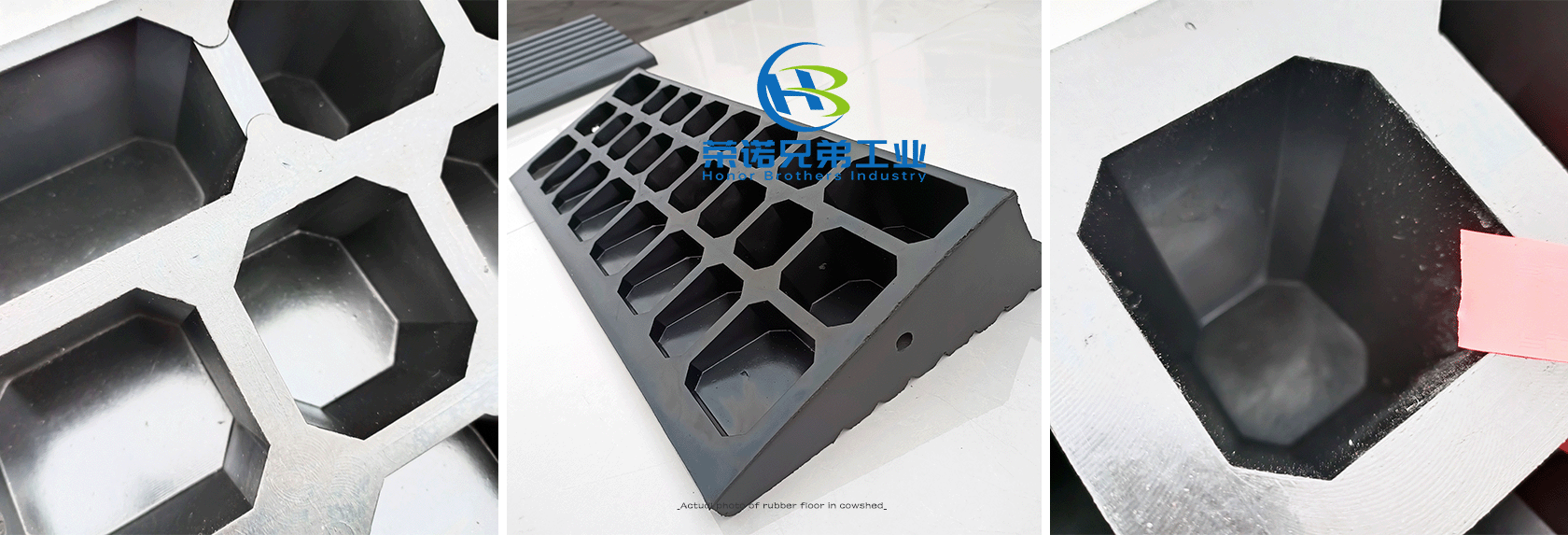

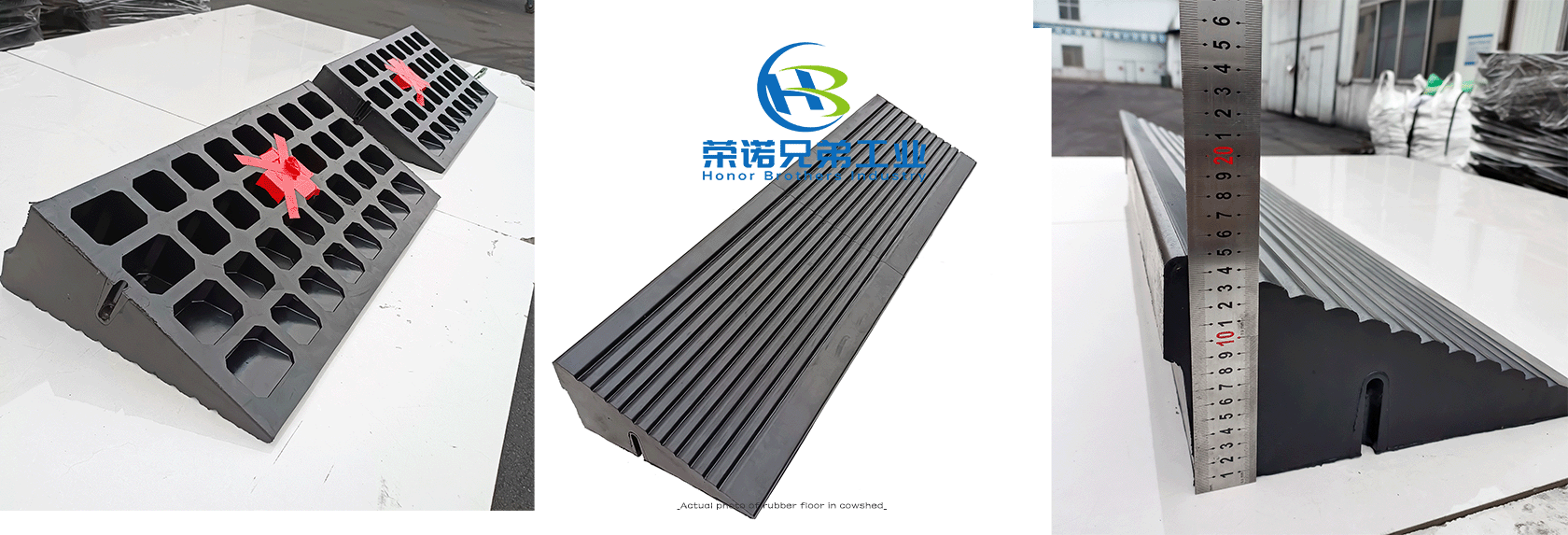

Product display
-
High load-bearing capacity
-
Non-slip
-
Easy to clean
-
Damping
-
Oil resistant
